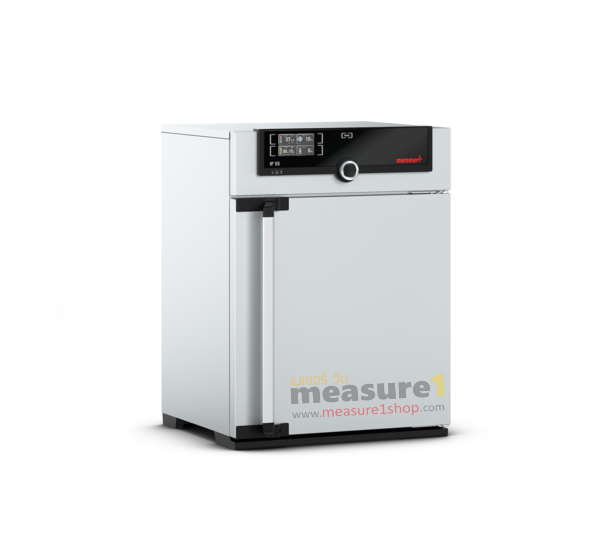

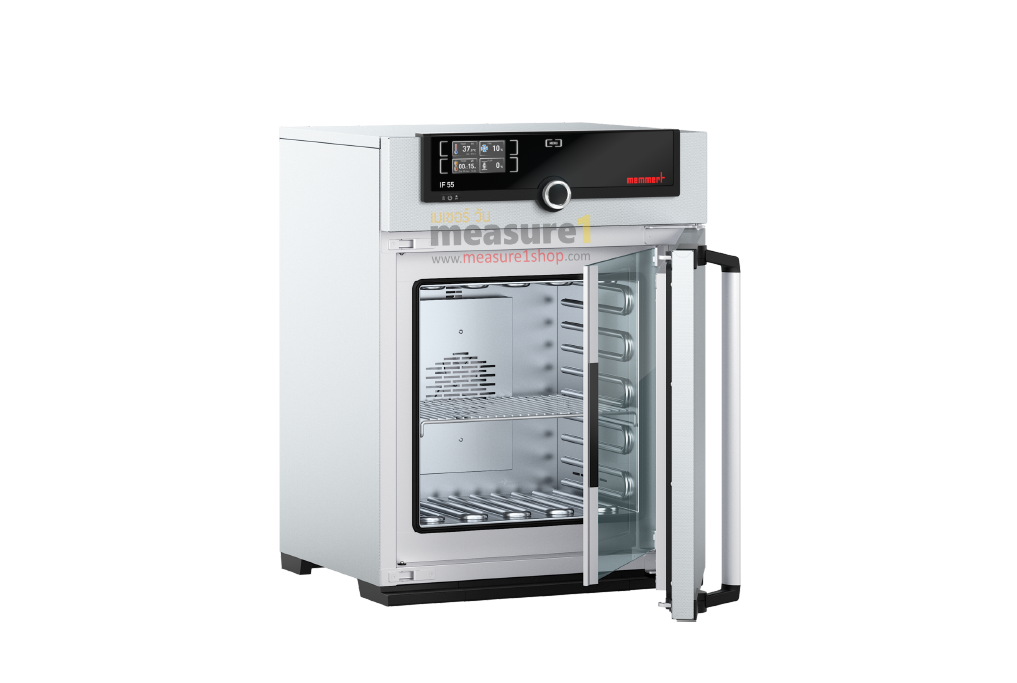

Memmert IF55 ตู้บ่มเชื้อ ตู้บ่มเพาะเชื้อ (Incubator) ขนาด 53 ลิตร แบบมีพัดลม

memmert
สถานะของสินค้า :

กรุณาสอบถามสต๊อกก่อนสั่งซื้อ


– ตู้บ่มเชื้อ/ตู้บ่มเพาะเชื้อ (Incubator) ความจุ 53 ลิตร
– มีพัดลม ช่วยกระจายความร้อนให้ทั่วตู้
– ขนาดภายใน กว้าง 400(A) x สูง 400(B) x ลึก 330(C) (มิลลิเมตร)
– ขนาดภายนอก กว้าง 585(D) x สูง 784(E) x ลึก 514(F) (มิลลิเมตร)
– กำลังของเครื่องทำความร้อน ประมาณ 1 กิโลวัตต์


** พร้อมใบ Calibration Certificate จากโรงงาน
** ส่งสินค้าพร้อมสอนการใช้งานในเขตกรุงเทพฯ และปริมณฑล ฟรี !!!
** ราคายังไม่รวมค่าขนส่งไปต่างจังหวัด
** ราคายังไม่รวม VAT

84,000 ฿

กรุณาสอบถามสต๊อกก่อนสั่งซื้อ

Memmert IF55 ตู้บ่มเชื้อ ตู้บ่มเพาะเชื้อ (Incubator) ขนาด 53 ลิตร แบบมีพัดลม
Memmert IF55 – Standard Incubator 53 l. with forced air circulation

ตู้บ่มเชื้อ หรือ ตู้บ่มเพาะเชื้อ (Incubator) แบบมีพัดลม (Forced convection) รุ่น IF55 ยี่ห้อ Memmert เป็นตู้บ่มเชื้อ ขนาด 53 ลิตร แบบมีพัดลม สำหรับช่วยกระจายความร้อนให้ทั่วถึงใกล้เคียงกันทั่วตู้ สามารถควบคุมได้ตั้งแต่ อุณหภูมิห้อง+10 ºC ถึง +80 ºC ตั้งเวลาได้ตั้งแต่ 1 นาที ถึง 99 วัน ควบคุมการทำงานด้วยระบบ Multifunctional digital PID-microprocessor controller

คุณลักษณะเฉพาะ ตู้บ่มเชื้อ/ตู้บ่มเพาะเชื้อ (Incubator with Forced Convection) รุ่น IF55 ยี่ห้อ Memmert
– ความจุ 53 ลิตร
– มีพัดลม ช่วยกระจายความร้อนให้ทั่วตู้
– ขนาดภายใน กว้าง 400(A) x สูง 400(B) x ลึก 330(C) (มิลลิเมตร)
– ขนาดภายนอก กว้าง 585(D) x สูง 784(E) x ลึก 514(F) (มิลลิเมตร)
– กำลังของเครื่องทำความร้อน ประมาณ 1 กิโลวัตต์

คุณลักษณะโดยรวม
1. ช่วงการทำความร้อน ตั้งแต่อุณหภูมิห้อง+10°C ถึง +80°C
2. ความละเอียดในการแสดงผล ทั้งค่า set point และ Actual = 0.1°C
3. มีเซนเซอร์วัดอุณหภูมิ แบบ Pt100 DIN Class A ทำให้วัดค่าได้อย่างถูกต้อง แม่นยำ
4. การควบคุมแบบ Multifunction Digital PID-microprocessor controller
5. สามารถตั้งค่าเวลาทำงาน ได้ตั้งแต่ 1 นาที – 99 วัน
6. มีพัดลม (Forced air circulation) สำหรับหมุนเวียนอากาศภายใน เพื่อให้อุณหภูมิมีความสม่ำเสมอทั่วตู้
7. มีระบบป้องกันเมื่ออุณหภูมิสูงเกินกว่าที่ตั้งค่าไว้
8. ประตูทำจากสเตนเลส (Stainless Steel) มีระบบล็อค 2 จุด
9. มีประตูกระจกด้านใน
10. ภายในตู้ทำจากสเตนเลส (Stainless Steel) ทำความสะอาดง่าย
11. หน้าจอเป็นแบบ Single Display, high-definition TFT-colour display

ท่านสามารถดาวน์โหลดข้อมูลเพิ่มเติมได้ที่
Memmert_IF55_Datasheet

memmert incubator
** รายละเอียดที่ระบุอาจเปลี่ยนแปลงโดยไม่ได้แจ้งให้ทราบล่วงหน้า เนื่องจากการเปลี่ยนแปลงรายละเอียดจากผู้ผลิต หรือความผิดพลาดเรื่องการพิมพ์ กรุณาสอบถามกับบริษัทฯ อีกครั้งหนึ่ง

** หน้าจอ, โปรแกรมและฟังก์ชั่นการทำงานอาจแตกต่างกันไปในแต่ละรุ่น

รายละเอียดทางเทคนิค ตู้บ่มเชื้อ/ตู้บ่มเพาะเชื้อ (Incubator with Forced Convection) รุ่น IF55 ยี่ห้อ Memmert
Part no. Memmert IF55

Temperature

Working temperature range min. 10°C above ambient up to +80°C
Setting accuracy temperature 0.1 °C
Temperature 1 Pt100 sensor DIN class A in 4-wire-circuit

Control technology

Language setting German, English, Spanish, French, Polish, Czech, Hungarian
ControlCOCKPIT SingleDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display
Timer Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
Function SetpointWAIT the process time does not start until the set temperature is reached
Calibration three freely selectable temperature values
adjustable parameters temperature (Celsius or Fahrenheit), fan speed, air flap position, programme time, time zones, summertime/wintertime

Ventilation

Fan forced air circulation by quiet air turbine, adjustable in 10 % steps
Fresh air admixture adjustment of pre-heated fresh air admixture by air flap control in 10 % steps
Vent vent connection with restrictor flap

Communication

Documentation programme stored in case of power failure
Programming AtmoCONTROL software for reading out, managing and organising the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand).

Safety

Temperature control adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature
Autodiagnostic system for fault analysis

Standard equipment

Door fully insulated stainless steel door with 2-point locking (compression door lock)
Internals 1 stainless steel grid(s), electropolished
Works calibration certificate incl. works calibration certificate for +37°C
Door inner glass door

Stainless steel interior

Dimensions w(A) x h(B) x d(C): 400 x 400 x 330 mm (d less 39 mm for fan)
Interior easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
Volume 53 l
Max. number of internals 4
Max. loading of chamber 80 kg
Max. loading per internal 20 kg

Textured stainless steel casing

Dimensions w(D) x h(E) x d(F): 585 x 784 x 514 mm (d +56mm door handle)
Housing rear zinc-plated steel

Electrical data

Voltage Electrical load 230 V, 50/60 Hz
approx. 1000 W
Voltage Electrical load 115 V, 50/60 Hz
approx. 900 W

Ambient conditions

Set Up The distance between the wall and the rear of the appliance must be at least 15 cm. The clearance from the ceiling must not be less than 20 cm and the side clearance from walls or nearby appliances must not be less than 5 cm.
Altitude of installation max. 2,000 m above sea level
Ambient temperature +5 °C to +40 °C
Humidity rh max. 80 %, non-condensing
Overvoltage category II
Pollution degree 2

Packing/shipping data

Transport information The appliances must be transported upright
Customs tariff number 8419 8998
Country of origin Federal Republic of Germany
WEEE-Reg.-No. DE 66812464
Dimensions approx incl. carton w x h x d: 730 x 950 x 670 mm
Net weight approx. 57 kg
Gross weight carton approx. 76 kg

** รายละเอียดที่ระบุอาจเปลี่ยนแปลงโดยไม่ได้แจ้งให้ทราบล่วงหน้า เนื่องจากการเปลี่ยนแปลงรายละเอียดจากผู้ผลิต หรือความผิดพลาดเรื่องการพิมพ์ กรุณาสอบถามกับบริษัทฯ อีกครั้งหนึ่ง
